Combination Cylinder

Field: Pneumatics and Automation

Patent Applied: 2015

The Combination Cylinder is a sophisticated leap in the field of pneumatics and automation, marrying the philosophy of multi-dimensional efficiency with highly specialized mechanical operation. It represents a paradigm shift from traditional, single-purpose industrial components toward integrated, highly adaptable robotic systems.

The Philosophy: Multi-Dimensional Efficiency

In standard industrial design, specific movements—like pushing, pulling, and turning—typically require entirely separate components, each adding weight, bulk, and complexity to a machine. The design philosophy behind this cylinder is rooted in functional synthesis: why separate what can be seamlessly combined? By conceptualizing motion not as isolated, linear actions but as fluid, interconnected operations, the design elegantly consolidates multiple capabilities into a single, cohesive unit. It is an exercise in doing more with less—reducing mechanical clutter while expanding operational possibility.

The Mechanism: Unifying Translation and Rotation

Traditionally, pneumatic systems rely on one cylinder for transitional (linear/in-and-out) movement, and a separate rotary actuator for rotational movement. The Combination Cylinder fundamentally reimagines this architecture.

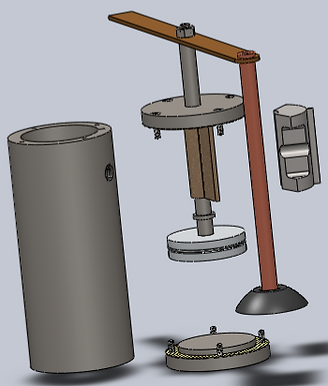

It is engineered as a unique, unified mechanism capable of executing both transitional and rotational functions simultaneously or sequentially from within the same housing. This dual-action capability requires immense internal precision, ensuring that the air pressure and mechanical linkages can dictate both the extension of the arm and its radial twist without either motion compromising the integrity or power of the other.

Real-World Application and Micro-Precision Impact

The practical applications for such a consolidated device are incredibly specialized, particularly in the realm of high-tech manufacturing and delicate automation.

Streamlined Automation: By combining two complex movements into one component, it significantly reduces the space, air consumption, and control circuitry required in automated assembly lines.
Micro-Component Handling: The cylinder is specifically designed with the delicacy and precision required for pick-and-place operations of small, sensitive electronics, such as IC (Integrated Circuit) chips.
Thermal Sensitivity Awareness: In high-stakes manufacturing, handling components that are sensitive to body temperature or external environmental changes requires machinery that can operate quickly, accurately, and without human contact. This cylinder provides the precise transitional reach and rotational orientation needed to securely manipulate these delicate chips without altering their properties.

The Combination Cylinder is a testament to the idea that true industrial innovation doesn't just make machines work harder; it makes them work smarter, bringing unparalleled elegance and multi-functional precision to the highly demanding world of modern automation.

Patent Applied: 2015

This is been designed and checked with a physical prototype also. here you can see the photograph of the product.
