Chocolate Maker
Field: Machine and Automation
The Chocolate Maker is a highly efficient automated machine designed to deliver massive production yields within a strictly confined physical space.
The Philosophy: Micro-Manufacturing Traditional industrial production often requires massive factory floors. The philosophy behind this design tackles the challenge of "micro-manufacturing"—proving that high-volume output and precise quality control can be achieved in an everyday space, like a 10' x 10' room, through intelligent and tightly integrated design.
The Mechanism: Pneumatic Automation
To fit within the room size constraints while maintaining a high output of 3,500 Kg, the machine's operations are governed entirely by a pneumatic control system. This air-driven circuit automates the process of molding precisely sized chocolates (25mm x 8mm dia.) and integrates seamlessly with a built-in belt conveyor for continuous collection.
Real-World Application and Impact
-
High-Yield in Small Spaces: Allows for massive, commercial-scale chocolate production without the need for large industrial warehouses.
-
Precision Automation: The pneumatic circuits ensure flawless consistency in the exact size and shape of every single piece.
-
Streamlined Workflow: The integrated conveyor system prevents bottlenecks, ensuring smooth operation from molding to collection within the small footprint.
Designed: to Make Chocolate of size 25mm X 8mm dia
Designed and provided with functional flow charts and pneumatic circuits for automated working.

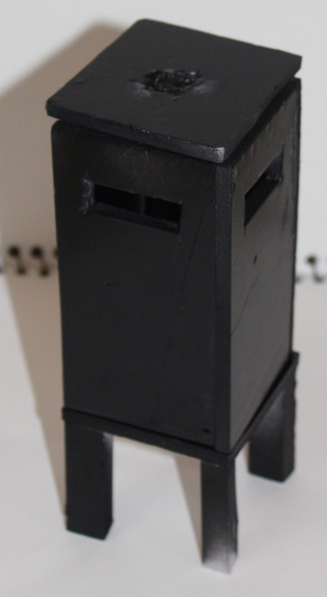

A rough Physical Prototype is displayed.
